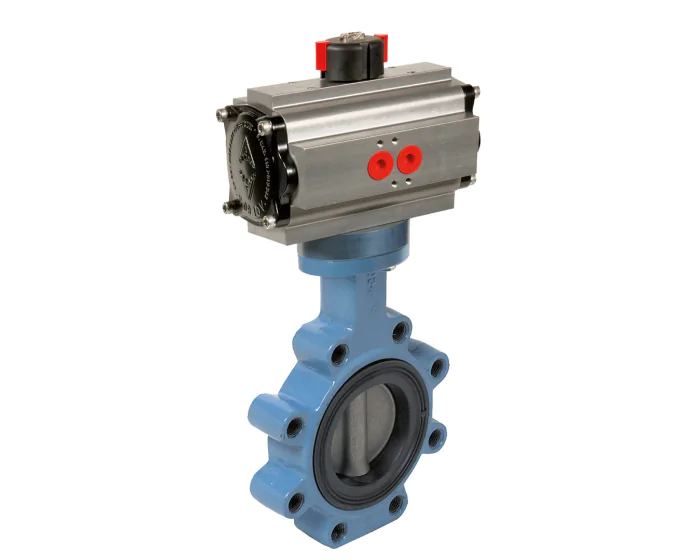

The 1181 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M and EN-GJS-500-7 disc, up to DN200. It is a lug type.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 420 |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 60.0 |
| Seat | NBR - Gas |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Position | Normally closed |
| PS (bar) | 5 |
| Connections | Flanged PN10/16 |
| Surface temperature | TX |
| TS max (°C) | 60 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| ATEX zone | 1.2.21.22 |
| Warranty period | 2 years |
| CE | Risk category II |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 Double acting | 261593015100 | S1003393 |
€221.71
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 Spring return | 261593016101 | S1003394 |
€249.90
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 261594015100 | S1003395 |
€221.71
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 261594016101 | S1003396 |
€255.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 261595015101 | S1003397 |
€266.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 261595016102 | S1003398 |
€304.99
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 261596015101 | S1003399 |
€385.56
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 261596016102 | S1003400 |
€330.49
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 261597015102 | S1003401 |
€314.21
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 261597016103 | S1003402 |
€387.60
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 261598015102 | S1003403 |
€392.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Spring return | 261598016104 | S1003404 |
€452.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 261599015103 | S1003405 |
€432.37
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Double acting | 261600015104 | S1003406 |
€703.80
(excl. btw)
|
add to cart |
